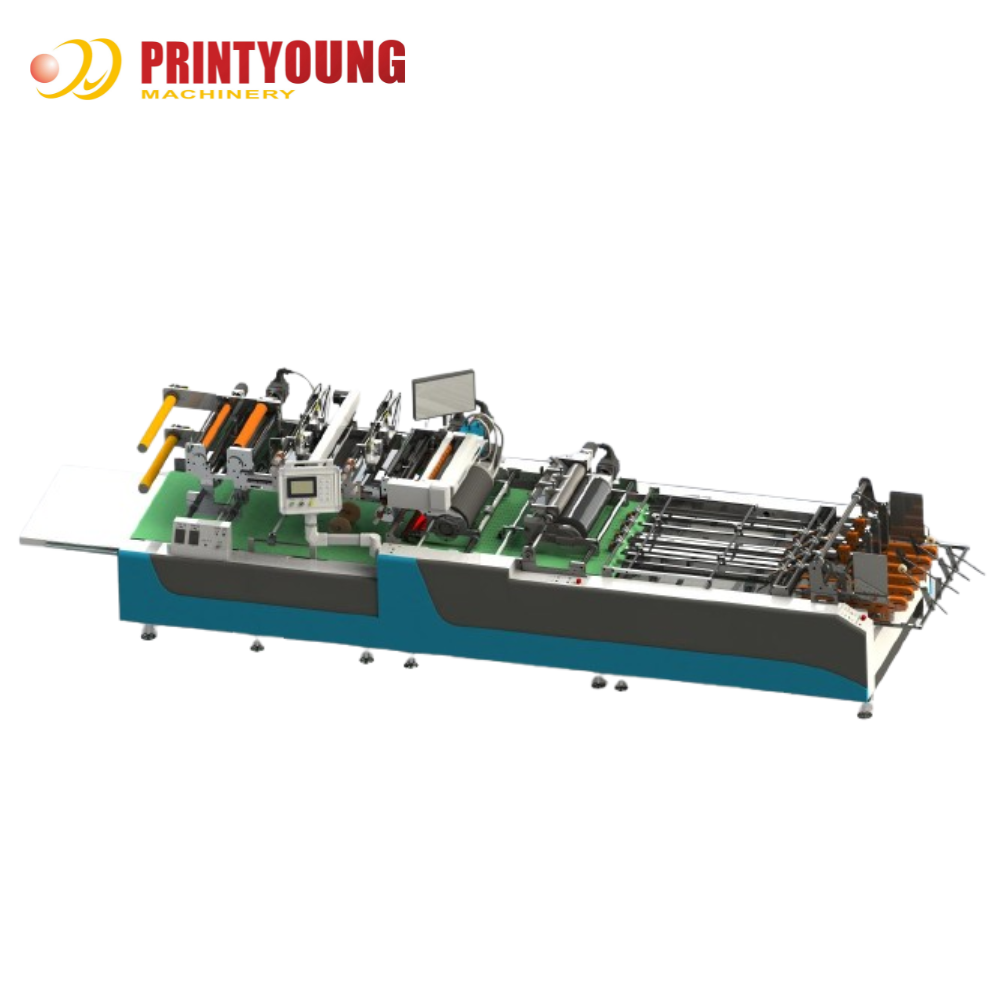

PRY-1650FH Fully Automatic Window Patching Machine with Double Channels

PRY-1650FH Fully Automatic Window Patching Machine with Double Channels
PRY-1650FH Fully Automatic Window Patching Machine with Double Channels
PRY-1650FH Fully Automatic Window Patching Machine with Double Channels PRY-1650FH Fully Automatic Window Patching Machine with Double Channels PRY-1650FH Fully Automatic Window Patching Machine with Double Channels PRY-1650FH Fully Automatic Window Patching Machine with Double Channels
Основная информация
Место происхождения: КИТАЙ
Фирменное наименование: PRINTYOUNG
Сертификация: CE
Номер модели: PRY-1650FH
Количество мин заказа: 1 набор
Цена: US 50000 Set
Упаковывая детали: Усыновляет устойчивую и амортизационную упаковку, которая подходит для дорожного транспорта на дальн
Время доставки: 45 дней
Условия оплаты: L/C, T/T.
Поставка способности: 30 комплектов/наборов в месяц
Контакт
Максимум Бумага с одной линией: 1650 * 800 мм Максимум Бумага из двух линий: 780 * 800 мм
Минимальн Бумага: 200 * 200 мм Максимум Фильм одной линии: 420 * 590 мм
Максимум Фильм двух строк: 420 * 290 мм Мин Фильм: 50 * 30 мм
Диапазон толщины пленки: 0,038 ~ 0,25 мм Максимальный диаметр пленки: 400 мм
Ошибка вклеивания: ± 0,5 мм Скорость работы самолета: 6000 ~ 63000 шт/ч
Скорость работы с разрезом V: 3000 ~ 13000 шт. Власть: 380 В 50/60 Гц 18 кВт

PRY-1650FH Fully Automatic Window Patching Machine with Double Channels 0
PRY-1650FH Window Patching Machine
PRY-1650FH Fully Automatic Window Patching Machine with Double Channels 1
PRY-1650FH Fully Automatic Window Patching Machine with Double Channels 2PRY-1650FH Fully Automatic Window Patching Machine with Double Channels 3
Technical Parameters
Model
PRY-1650FH
Max. Paper of One Line
1650 * 800 mm
Max. Paper of Two Line
780 * 800 mm
Min. Paper
200 * 200 mm
Grams of Kraft Paper
150 ~ 1200 g/m²
Grams of White Cardboard
230 ~ 1200 g/m²
Grams of Corrugated Paper
≤ 4 mm
Max. Film of One Line
420 * 590 mm
Max. Film of Two Line
420 * 290 mm
Min. Film
50 * 30 mm
Film Thickness Range
0.038 ~ 0.25 mm
Maximum Diameter of Film
400 mm
Pasting Error
± 0.5 mm
Work Speed of Plane
6000 ~ 63000 pcs/h
Work Speed of V Cut
3000 ~ 13000 pcs/h
Servo
13 Set
Electrical Appliances
3 Set
Machine Size
7100 * 2200 * 1600 mm
Power
380V 50/60Hz 18kw
Weight
5 T
Configuration
PRY-1650FH Fully Automatic Window Patching Machine with Double Channels 4PRY-1650FH Fully Automatic Window Patching Machine with Double Channels 5

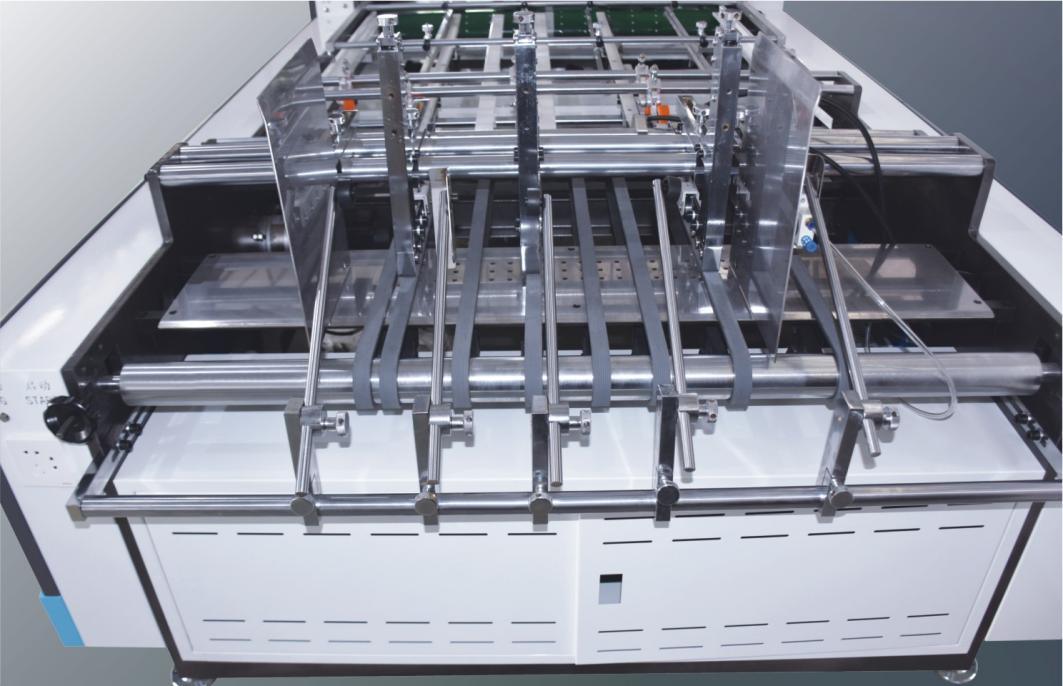

Paper Feeder
The intermittent belt conveying method adopts an independent servo control system,which can adjust the intermittent conveying distance according to the length of the paper;the paper pumping belt extracts paper from the bottom, eliminating the traditional clutch control method,so as to realize continuous paper feeding without stopping the machine.
Operation Interface
All parameter settings and function switches are operated on the touch screen.There are "jog,start,emergency stop,speed adjustment" shortcut operation buttons on the periphery of the operation panel.
PRY-1650FH Fully Automatic Window Patching Machine with Double Channels 6PRY-1650FH Fully Automatic Window Patching Machine with Double Channels 7

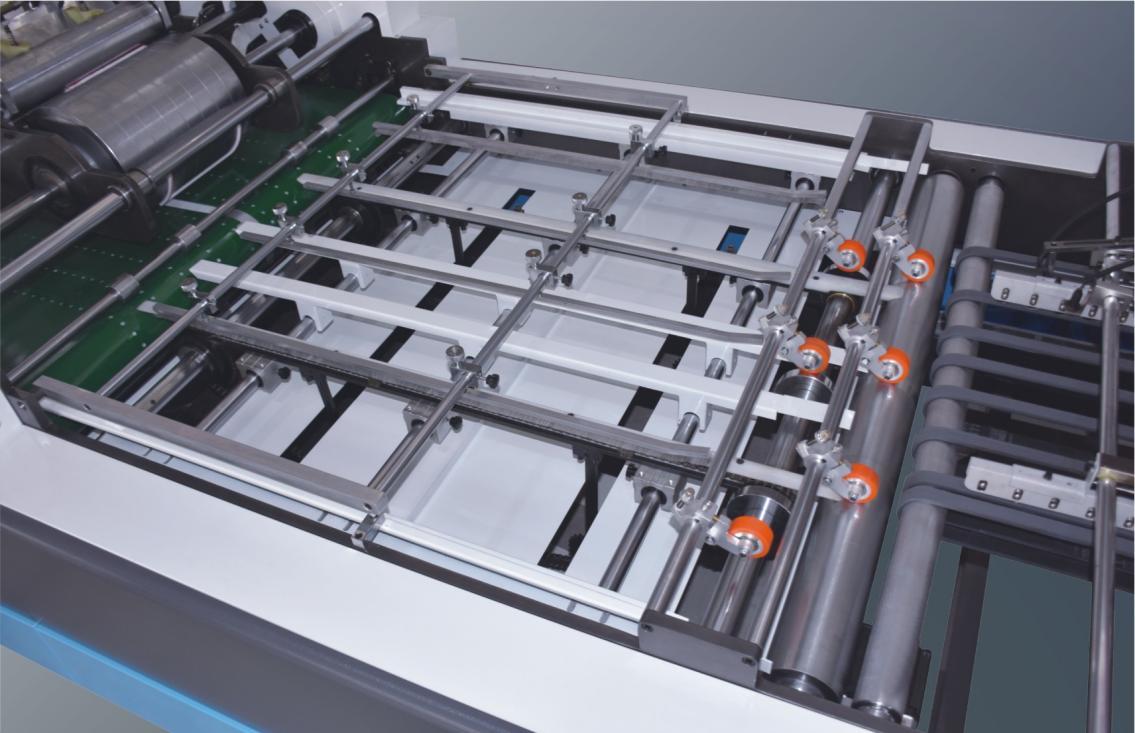

Positioning Part
The chain guide bar is made of imported polymer materials that are wear-resistant and silent.The paper positioning uses square push blocks and brushes to increase the stability of high-speed paper operation.
Gluing Section
The transverse and longitudinal directions of the gluing roller are driven by motors respectively,and can be directly adjusted in two directions without stopping the machine. The gluing section also has a gap avoidance function (servo control) to prevent glue from contacting the belt and reduce frequent accidents due to gaps.The trouble of shutting down the machine to clean the belt.
PRY-1650FH Fully Automatic Window Patching Machine with Double Channels 8PRY-1650FH Fully Automatic Window Patching Machine with Double Channels 9
Film Pasting Department
Film feeding adopts servo motor transmission and roller adsorption for continuous pasting.Compared with traditional intermittent pasting,it has the advantages of fast pasting speed,high precision and low film requirements.

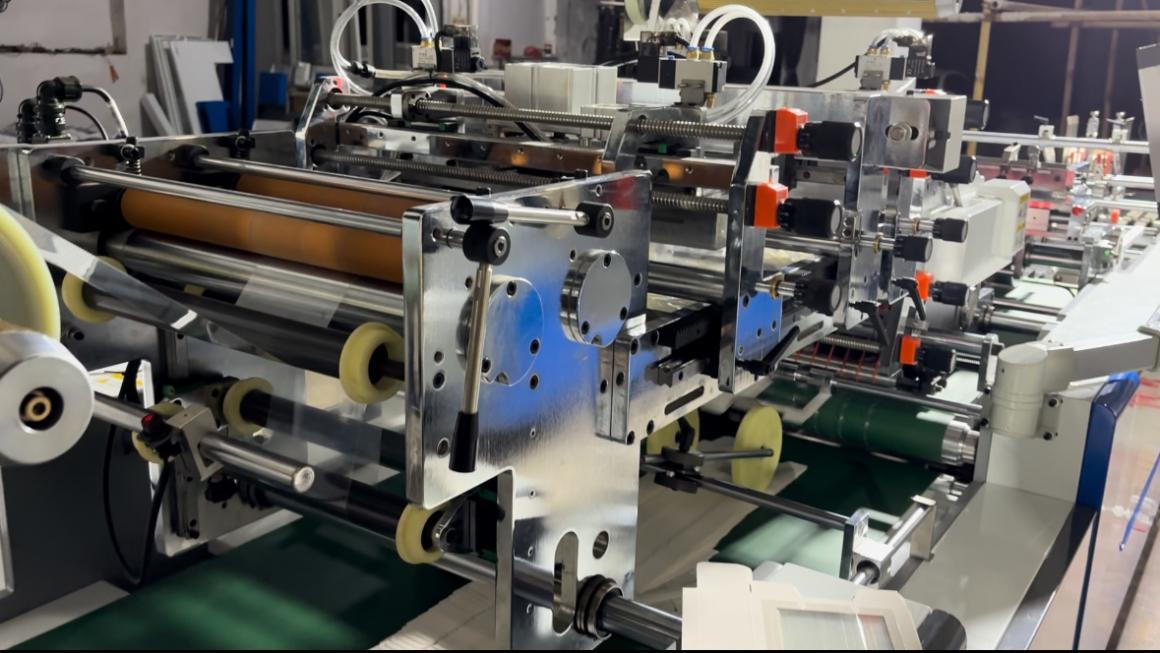

Film Unwinding Section
It is faster and more convenient to install and replace film on the air-expanding shaft.The electromagnetic tension control system keeps the film unwinding tension constant at an ideal state, making the film more precise. Servo controls film roll feeding and corner cutting positions to improve production accuracy and efficiency.
PRY-1650FH Fully Automatic Window Patching Machine with Double Channels 10PRY-1650FH Fully Automatic Window Patching Machine with Double Channels 11
Paper Delivery Platform
The paper delivery platform uses a separate servo-controlled belt to operate.The stacking distance can be adjusted as a whole or in sections,and runs at multiple speeds.Can be used continuously, paused,and points flexibly.
Electrical System
The whole machine adopts full servo motion control,and various electrical components and detection switches are made from products from Japan,Taiwan, France,Germany and other companies.
PRY-1650FH Fully Automatic Window Patching Machine with Double Channels 12
PRY-1650FH Fully Automatic Window Patching Machine with Double Channels 13
PRY-1650FH Fully Automatic Window Patching Machine with Double Channels 14
PRY-1650FH Fully Automatic Window Patching Machine with Double Channels 15
PRY-1650FH Fully Automatic Window Patching Machine with Double Channels 16
PRY-1650FH Fully Automatic Window Patching Machine with Double Channels 17
PRY-1650FH Fully Automatic Window Patching Machine with Double Channels 18
